Footless Seals
Inflatable seals designed without foot structures, suitable for applications requiring flexible groove retention.
.avif)
Design Variants
.avif)

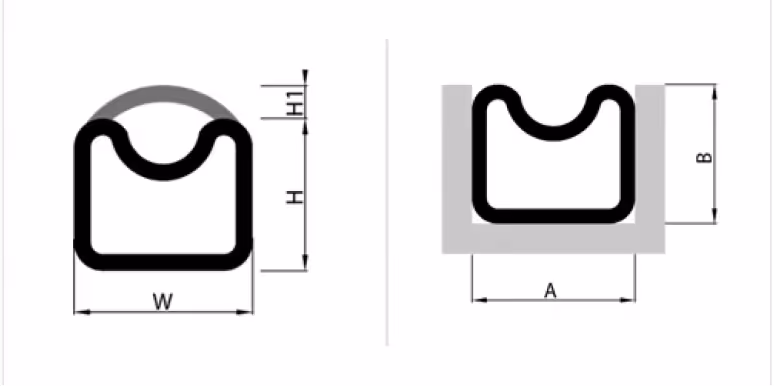

Round (RD)
Round footless seals are commonly used inflatable seal profiles. They provide uniform expansion and are suitable for general sealing applications.
.avif)
Dovetail (D)
Dovetail footless seals are designed to improve retention inside the groove. The profile geometry helps reduce seal movement during inflation.
.avif)
Dovetail (D)
Fabric-reinforced dovetail seals are used where higher internal pressures are involved. The fabric reinforcement increases strength and improves resistance to deformation.

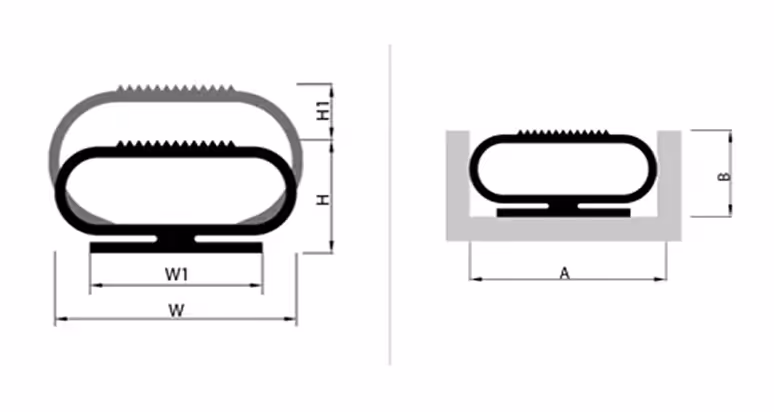

Oblong (O)
Fabric-reinforced oblong seals are selected for demanding operating conditions. The reinforced construction enhances durability and seal life.
.avif)
Inflatable Seals
- Seal Profiles & Dimensions
- Inflation Pressure Data
- Custom Seal Configurations
.avif)
7.6 MB
.avif)
.avif)
.avif)
Simple configuration. Wide application use.
